特殊工艺

SPECIAL PROCESS

    产品说明 PRODUCT

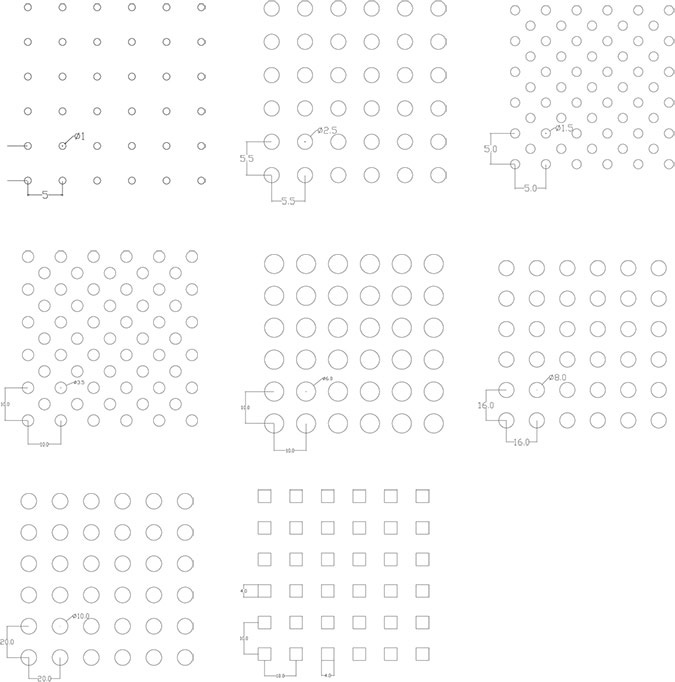

    1-1 数控转塔圆形冲孔 CNC Rotating Turret Circular Perforation
直径Φ2.0、Φ2.5、Φ3.0、Φ3.5、Φ4.2、Φ5.2、Φ6、Φ6.5、Φ8、Φ8.5、Φ10、Φ10.5、Φ12、Φ15、Φ16、Φ18、Φ20、Φ25、Φ30、Φ40、Φ45

    1-2 数控转塔腰形冲孔 CNC Rotating Turret Isosceles Perforation
20*6.5、25*10

    1-3 龙门冲（最大料宽1400mm）
Double Column Perforation (max. material width 1400mm)

    由于塔冲作业冲孔为点式作业，需要时间较长；龙门冲可以成排作业，速度快，建议板面留白10mm左右。

    特殊工艺

    SPECIAL PROCESS

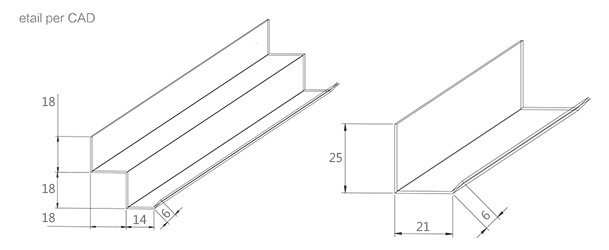

    收边角 WALL MOLDING

    收边角多采用与预滚涂面板相同的材料，以防止色差的发生。最多采用L型和W型两种样式。立体图（详CAD）

    Wall molding adopts the same material with pre-coating panel to avoid color difference, including L-shape and W-shape.
Detail per CAD

    吸音棉 ACOUSTICAL FLEECE

    吸音棉普遍使用德国进口的SoundTex的品牌，厚度仅0.2mm故也可称作吸音纸,在国家防火建筑材料质量监督检验中心通过B1级(难燃级)。基于配置的降噪系数在0.6-0.8之间。可以用于任何形状的穿孔天花上，成薄片状，裁剪十分方便。

    Acoustical Fleece is SoundTex fleece imported from Germany, its thickness is 0.2mm only, so also it is called fleece, fire resistance is Class B1 per national standard and NRC is 0.6-0.8. SoundTex fleece can be used on any shape perforation ceilings and easy to be cut into sheet.

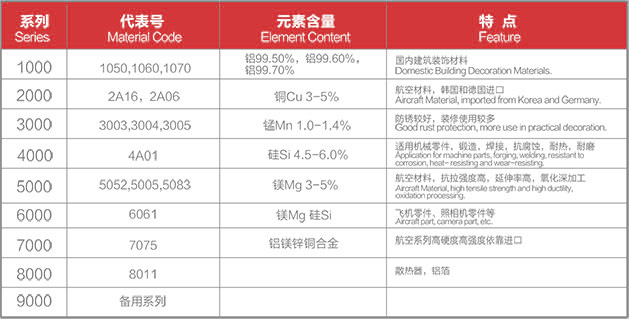

    铝板牌号 ALUMINUM MATERIAL GRADE

    铝合金状态：包括F、O、H、W、T：

    F：自由加工状态 适用于在成型过程中，对于加工硬化和热处理条件无特殊要求的产品，该状态产品的力学性能不作规定。
F: Free machining status Application in forming process and no special requirement on process hardening and heat treatment conditions, mechanical property has no specified.

    O：退火状态 适用于经完全退火获得最低强度的加工产品。
O: Annealing status Application for the processing products of minimum strength annealed entirely.

    H：加工硬化状态 用于通过加工硬化提高强度的产品，产品在加工硬化后可经过（也可不经过）使强度有所降低的附加热处理。代号后面必须根有两位或三位阿拉伯数字
H1：经加工硬化后不进行热处理而获得规定强度的产品
H2：加工硬化和不完全退火状态
H3：加工硬化后经低温热处理 H14 H24 H32，第二个阿拉伯数字代表了硬度，数字越高，硬度越高。
H: Process Hardness Status Application for the products to improve strength by processing hardness, the purpose for lessening strength through additional heat treatment is optional. The item code should follow two or three Arabic numbers.
H1: No need to heat treatment after processing hardness to acquire the products of strength specified.
H2: Processing hardness and incompletely annealing status.
H3: Low temperature heat treatment after processing hardness, i.e. H14 H24 H32, the 2nd Arabic number means hardness, the higher that number is, the hardness is much higher.

    W：固溶热处理状态 一种不稳定状态，仅适用于经固溶热处理后，室温下自然时效的合金，该状态代号仅表示产品处于自然时效阶段。
W: Solution Heat Treatment Unsteadiness status, only application for alloy at room temperature after solution heat treatment, this status item code only means the products in the natural stage.

    T：热处理状态 （不同于F、O、H） 适用于热处理后，经过（或不经过）加工硬化达到稳定状态的产品，T代号后面必须根有一个或多位阿拉伯数字。
T: Heat Treatment Status (not same as F, O, H) Application for the products reached steadiness status through or not through processing hardness after heat treatment.

    特殊工艺

    SPECIAL PROCESS

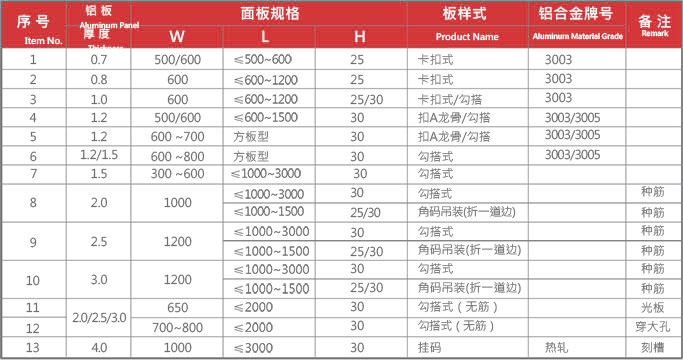

    铝板（单板）加工范围及材质要求
ALUMINUM PANEL (SINGLE PANEL) PROCESSING RANGE & MATERIAL REQUIREMENT

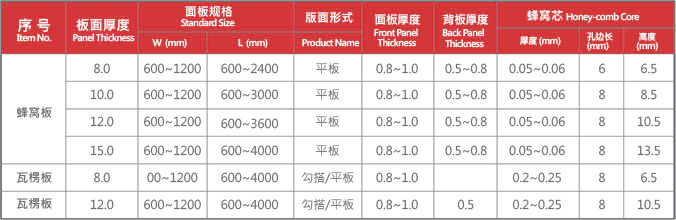

    铝板（复合板）加工范围及材质要求 Aluminum plate
ALUMINUM PANEL (COMPOSITE PANEL) PROCESSING RANGE & MATERIAL REQUIREMENT

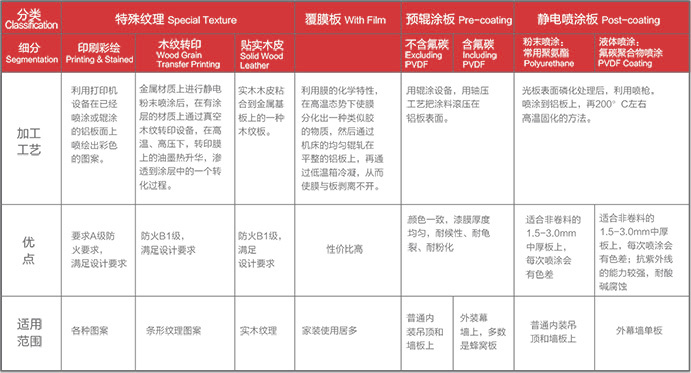

    铝板表面处理工艺对照表 ALUMINUM PANEL SURFACE FINISH DETAIL
