卡扣式OWCN-FK系统

OWCN-FK CLIP IN SYSTEM

产品说明 PRODUCT DESCRIPTION

此系列产品安装采用嵌入式，折边嵌在暗架龙骨里，使结构更加牢固，板缝更加笔直。若折边采用倒角，使吊顶轮廓线更加清晰，整体显得美观大方。有光板面板、标准孔面板、微孔面板供选择。

● Concealed suspended system for monolithic effect.

● Make the structure more fastness and the panel’s gap more straight

● The edge adopted with chamfer, the ceiling profile more clear.

● Un-perforated panels, standard perforated panels and micro perforated panels for options.

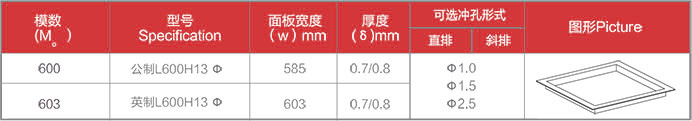

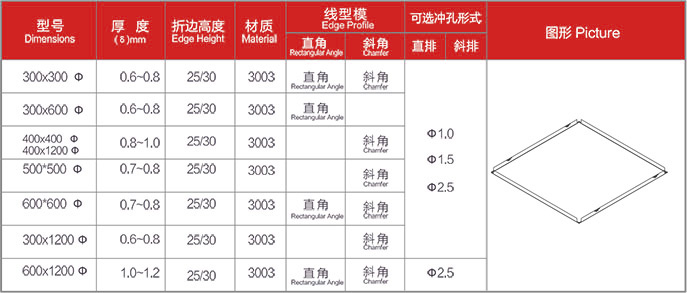

卡扣式系列铝合金矩形板 ALUMINUM CLIP IN SYSTEM

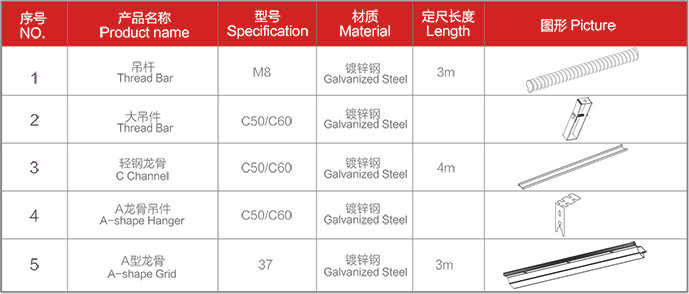

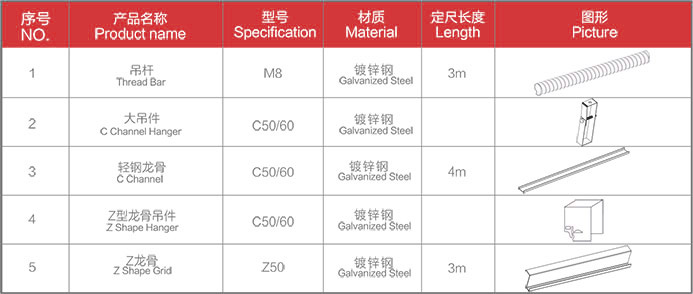

卡扣式系列矩形板选用附件表 CLIP IN SUSPENSION SYSTEM

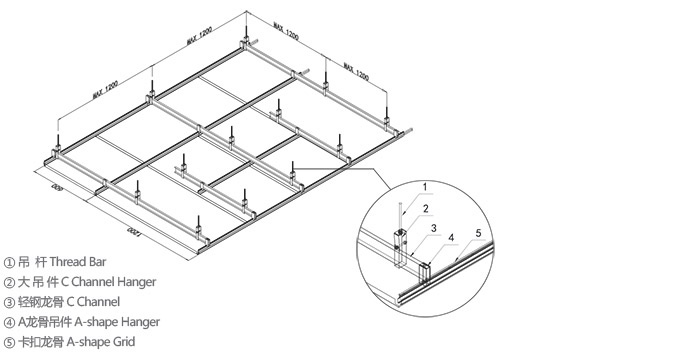

安装结构示意图 INSTALLATION AND ASSEMBLY DETAIL

铺放式OWCN-FP系统

OWCN-FP SYSTEM

产品说明 PRODUCT DESCRIPTION

铺放式方板采用搁式结构，施工方便，无需任何工具，每件可多次重复拆装。明龙骨中黑色凹槽线与白色方板搭配，使吊顶显得明快、色彩鲜明。有光板、标准孔面板、微孔面板供选择。

● Standard grid systems, simple accessibility

● Contemporary appearance

Un-perforated panels, standard perforated panels and micro perforated panels for options.

明架方板 LAY IN PANEL

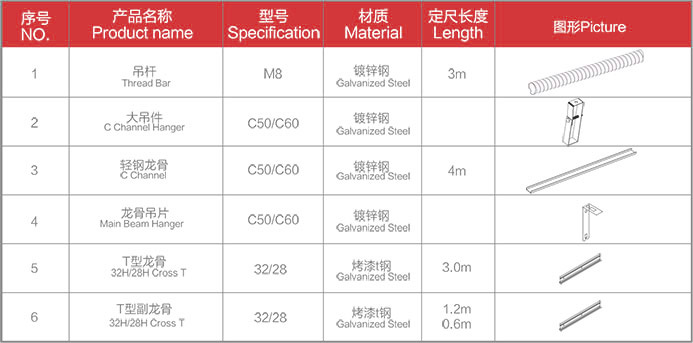

明架方板选用附件表 LAY IN SUSPENSION SYSTEM

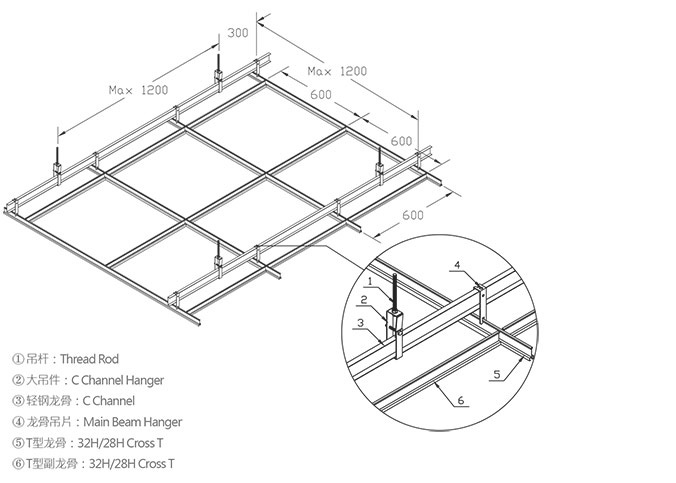

安装结构示意图 INSTALLATION AND ASSEMBLY DETAIL

悬挂式OWCN-FX系统

OWCN-FX SUSPENDED SYSTEM

产品说明 PRODUCT DESCRIPTION

悬挂式系统采用勾挂结构，施工方便，每件可多次重复拆装。
有光板、标准孔面板、微孔面板供选择。

● Hook-on grid systems, simple accessibility

●Un-perforated panels, standard perforated panels and micro

perforated panels for options.

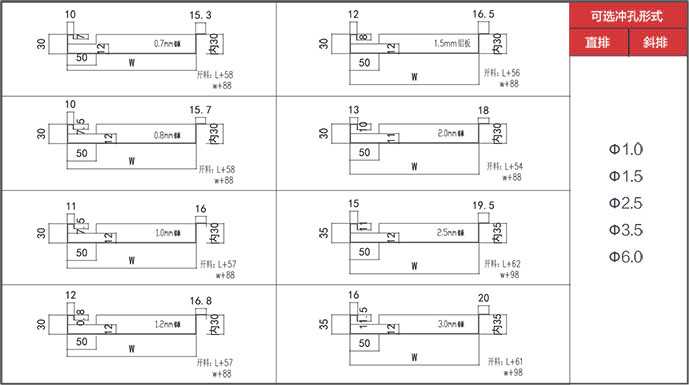

悬挂系列勾挂板 HOOK-ON PANEL

选用附件表 HOOK-ON SUSPENSION SYSTEM

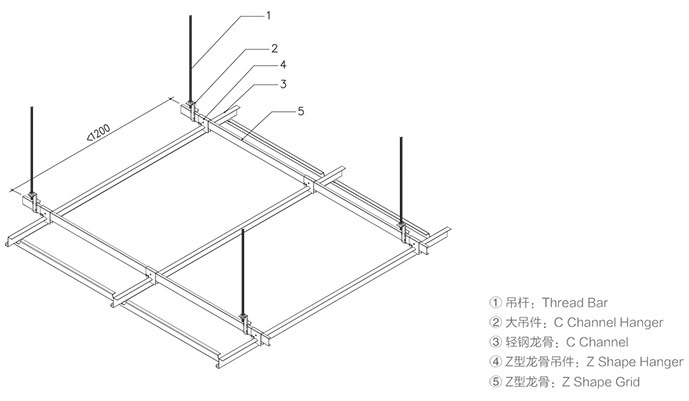

安装结构示意图 INSTALLATION AND ASSEMBLY DETAIL
